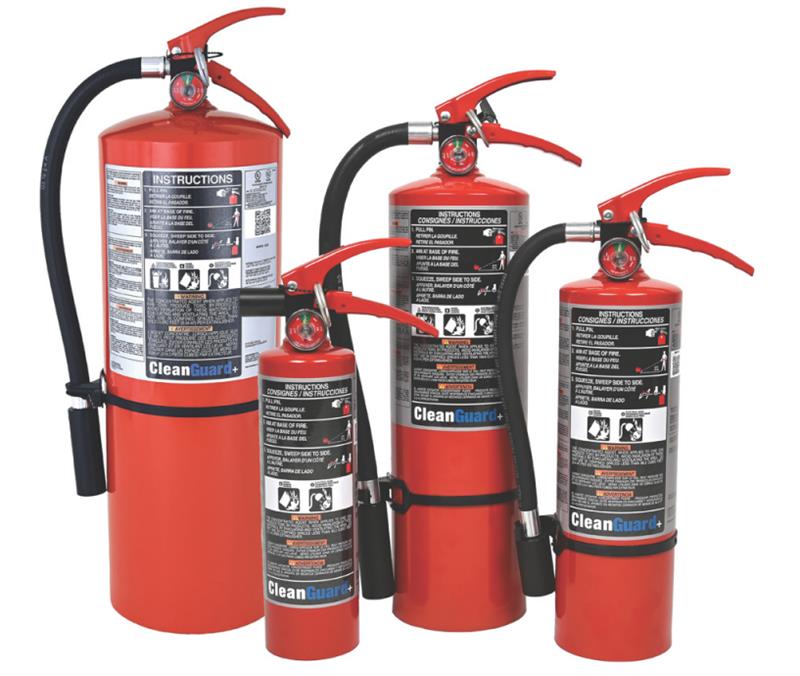

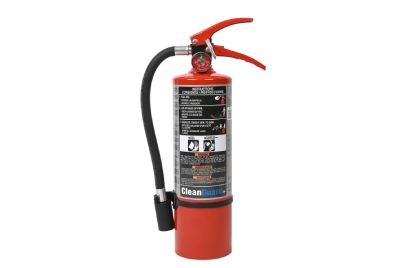

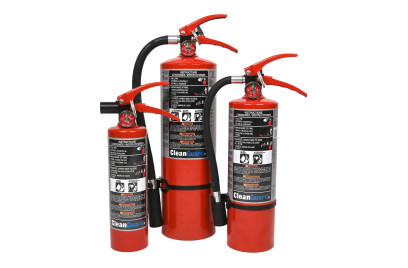

ANSUL CLEANGUARD+® Clean Agent Fire Extinguishers
Nationwide shipping available. Stocking and shipping support for facilities, contractors, integrators, and fire‑equipment dealers across the U.S.
Fast Facts
- Agent: FK‑5‑1‑12 (clean, residue‑free, electrically non‑conductive)
- Fire Classes: A, B, and C (model‑dependent ratings below)

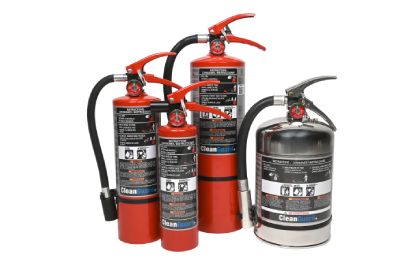

- Sizes/Models: CA03VB (3.5 lb), CA07 (7.5 lb), CA13 (13 lb), CA25 (27.75 lb), CA14‑NM (14 lb MR Conditional)
- Listings & Approvals: UL/ULC (select models also USCG with approved bracket)
- Warranty: 6‑year limited (from delivery to original end‑user)
- Operating Temp: –40 °F to 120 °F (–40 °C to 49 °C)
- Environment: 0 ODP, <1 GWP, ~5‑day atmospheric lifetime (agent)
- Maintenance: Rechargeable; hydrostatic test every 12 years (per model data sheet)
Why clean agent? No cleanup, no residue, and no conductive risk to energized equipment—ideal for protecting electronics, servers, labs, artifacts, and control rooms where downtime and collateral damage are unacceptable.
What Is FK 5 1 12?
FK‑5‑1‑12 is a next‑generation, clean, non‑conductive suppression agent that discharges as a liquid and instantly flashes to a gas for efficient knock‑down and extended effective range. It’s non‑corrosive, leaves no residue, and has excellent people‑ and asset‑protection characteristics (low toxicity profile; LOAEL 10%). Environmentally, FK‑5‑1‑12 has zero ozone‑depletion potential (ODP) and ultra‑low global‑warming potential (<1 GWP) with an atmospheric lifetime measured in days, not years.
Fast Facts
Tip: Select the model by hazard type, desired UL rating, and required discharge time/effective range. We can help you size and place units for your occupancy and AHJ requirements.
Standard Models (UL/ULC Listed)
| Model | Agent (lb) | UL/ULC Rating | Discharge Time | Effective Range | Charged Wt. | H × W × D | USCG Classification* | Bracket Part No. |
| CA03VB | 3.5 | 2‑B:C | 8.9 s | 8–10 ft | 6.08 lb | 14‑1/4″ × 5‑3/4″ × 3‑3/8″ | — | 24610 |
| CA07 | 7.5 | 5‑B:C | 8.2 s | 8–10 ft | 12.12 lb | 16‑3/4″ × 8‑1/2″ × 4‑7/16″ | Type B:C Size I | (Bracket included) |
| CA13 | 13.0 | 1‑A:10‑B:C | 10.7 s | 10–12 ft | 20.08 lb | 20‑1/2″ × 8‑1/4″ × 5‑1/4″ | Type B:C Size I | 429146 |
| CA25 | 27.75 | 2‑A:10‑B:C | 18 s | 14–16 ft | 39.84 lb | 23‑7/8″ × 9‑3/4″ × 7‑3/8″ | Type B:C Size I | 30937 |
*USCG approvals require the approved bracket and proper marine installation.
MRI‑Room Model (MR Conditional, UL/ULC Listed)
| Model | Use Case | Agent (lb) | UL/ULC Rating | Discharge Time | Effective Range | Charged Wt. | H × W × D |
| CA14‑NM | MR Conditional to 7.0 tesla; non‑magnetic stainless shell/valve/hose/nozzle | 14.0 | 1‑A:10‑B:C | 11.0 s | 10 ft | 19.16 lb | 14‑3/4″ × 9‑1/4″ × 7‑1/8″ |
Hydrostatic Test Interval: 12 years (all models).
Operating Temperature: –40 °F to 120 °F across the range.
Performance Snapshot (UL Panel Guidance)
- CA13: Class A 8 ft × 8 ft panel; Class B 10 ft² (novice) / 25 ft² (experienced)
- CA25: Class A 10 ft × 10 ft panel; Class B 10 ft² (novice) / 25 ft² (experienced)
(UL defines “novice operator” as minimal experience using a portable extinguisher.)
Clean‑Agent Comparison (At‑a‑Glance)
Criteria | FK‑5‑1‑12 (CLEANGUARD+) | HALOTRON BrX™ | HALOTRON I |
Ozone Depletion Potential | 0 | 0.0028 | 0.014 |
Global Warming Potential | < 1 | 0.26 | Low |
Atmospheric Lifetime | ~0.014 yr (~5 days) | ~0.013 yr | ~1.3 yr |
Cardiotoxicity LOAEL (higher = less toxic) | 10% | 1% | 2% |
Cardiotoxicity NOAEL | < 10% | 0.5% | 1% |
Minimum Approved Room Volume** | |||
2‑B:C: 40.3 ft³ | |||
5‑B:C: 86.3 ft³ | |||
1‑A:10‑B:C: 149.6 ft³ | |||
2‑A:10‑B:C: 319.3 ft³ | |||
2‑B:C: 427 ft³ | |||
5‑B:C: 896 ft³ | |||
1‑A:10‑B:C: 2988 ft³ | |||
2‑B:C: 350 ft³ | |||
5‑B:C: 700 ft³ | |||
1‑A:10‑B:C: 1540 ft³ | |||
2‑A:10‑B:C: 2170 ft³ |
Notes:
• Minimum room volumes shown are per UL 1093/2129 guidance; volumes must be larger for more toxic agents.
• Always verify agent and room size suitability for your application and occupancy.
Where CLEANGUARD+ Shines
- Selection & placement follow NFPA 10 and your Authority Having Jurisdiction (AHJ). Ratings/classes and travel distances depend on hazard type and occupancy.
- Mounting at accessible heights with approved brackets is required; several models include or specify a factory bracket.
- Marking & signage: ensure visibility, access, and clear pathways.
We can help match ratings, quantities, and placements to your floor plan and hazard profile, and coordinate with your AHJ.
Placement, Installation & Compliance (Quick Guide)
- Selection & placement follow NFPA 10 and your Authority Having Jurisdiction (AHJ). Ratings/classes and travel distances depend on hazard type and occupancy.
- Mounting at accessible heights with approved brackets is required; several models include or specify a factory bracket.
- Marking & signage: ensure visibility, access, and clear pathways.
We can help match ratings, quantities, and placements to your floor plan and hazard profile, and coordinate with your AHJ.
Inspection, Maintenance & Service
- Monthly visual inspections ensure each unit is present, accessible, undamaged, and fully charged.
- Annual maintenance by a licensed technician is recommended/required to verify mechanics, labeling, and readiness.
- After any discharge – even for a brief test – units must be recharged.
- Hydrostatic test: every 12 years for CLEANGUARD+ models (label/data sheet governs).
- Recordkeeping: maintain tags and service records; QR‑coded nameplates simplify documentation.
Need help? We offer recharge, hydrostatic testing, and walk‑in service support at our St. Petersburg facility, plus shipping of recharged units to enterprise sites and dealer branches nationwide.

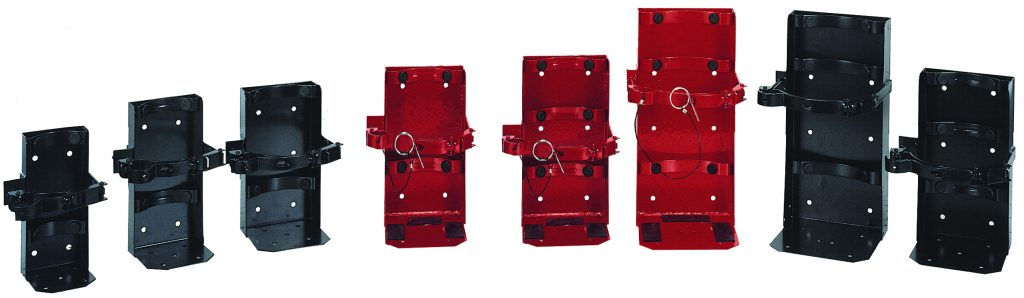

Accessories & Brackets
- Wall brackets: Model‑specific (see table above).
- Vehicle/marine mounting: Use the approved bracket to maintain USCG listing where applicable.
- Covers & cabinets: Metal, plastic, and recessed cabinets available for architectural integrations.
Ordering & Nationwide Shipping
- Single units, case‑packs, or palletized shipments available.
- Professional packing helps prevent transit damage; units ship pressurized and leak‑tested.
- Ground service is typically used for pressurized cylinders; expedited options available where carrier policy allows.
- Multi‑site rollouts: we can kit, label, and drop‑ship to each location with consolidated invoicing.
Request a quote: include model(s), quantities, ship‑to ZIP, and any bracket/cabinet needs. We’ll confirm lead times and freight.
FAQ’s
Are CLEANGUARD+ extinguishers safe for energized equipment?
Yes. FK‑5‑1‑12 is electrically non‑conductive and leaves no residue, making it ideal for energized circuits, servers, and control panels.
Do they meet code?
CLEANGUARD+ models are UL/ULC listed and tested to ANSI/UL 2129/711 with model‑specific ratings. Your AHJ/NFPA 10 governs placement and count.
What’s the difference between FK 5 1 12 and Halotron®?
FK‑5‑1‑12 offers 0 ODP, <1 GWP and a very short atmospheric lifetime. It also shows a more favorable cardiotoxicity profile and much smaller minimum room volume requirements for approved use when compared to many halocarbons. See the comparison above.
Is there an MRI safe option?
Yes. CA14‑NM is MR Conditional (tested to 7.0 T) with a stainless, non‑magnetic assembly for mounting inside MRI rooms.
How often do these need service?
Perform monthly visual inspections; schedule annual maintenance by a licensed technician; plan hydrostatic testing every 12 years (per model data sheet/label); and recharge after any discharge.
Can you ship these anywhere in the U.S.?
Yes—nationwide shipping is available. Most units ship via ground service due to carrier rules for pressurized cylinders. We’ll handle the packaging and logistics.
Do you stock cabinets and signage?
Yes—surface, semi‑recessed, and recessed cabinets; vehicle and marine brackets; decals and ID signs are available.
